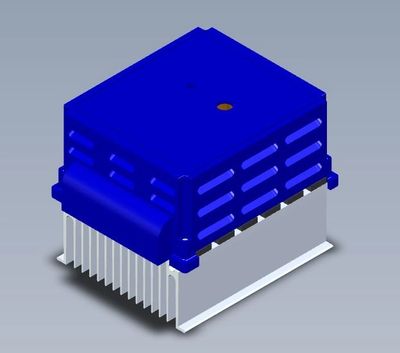

Digital AC Drive - NEMA 1 / IP20 Enclosure
1/8 to 2 HP, Programmable AC Drive (Inverter/Variable Frequency Drive)
Input: 115/230 VAC, 1-phase, 50/60 Hz
Maximum AC Line Input Current: 15.0 Amps RMS
Output: 0 to 230 VAC, 3-phase, 0 to 700 Hz, 6.3 Amps/phase
Features
200% Starting Torque
Inrush Current Limit Protection (ICLP)
Controlled Acceleration and Deceleration
Saves Time
Easy to Install and Simple to Operate
Motors last longer with Proprietary Current Limit
Energy Saving
Customizable for Your Application
Inputs/Outputs
Isolated +24 V DC Power Supply
1 isolated programmable analog multi-function input (0-5/10V, 4-20mA)
1 isolated dry contact multi-function output (115/230V, 5A)
1 programmable analog multi-function input
5 digital multi-function inputs
1 digital/analog output
4 programmable DIP switch settings
2 onboard analog potentiometers
3 onboard programmable LEDs
Mechanical Specifications
Overall Length: 6.7 inches
Overall Width: 5.5 inches
Overall Depth: 5.3 inches
Protection
Current Limit, Inrush Current Limit (ICL), MOV Input Transient Suppression, Nuisance Tripping, Overload, Over-voltage, Regeneration Protection, Ride Through, Short Circuit, Under-voltage.
Applications
Actuators, Air Cleaners, Amusement Rides, Sprayers, Ball Pitching Machines, Blowers, Boat Lifts, Bowling Alley Lane Cleaners, CNC, Conveyors, Door and Gate Openers, Drilling, Duct Cleaners, Dumbwaiters, Elevators and Hoists, Exercise Equipment, Fabric Processing, Fans, Feeders, Film Processing, Floor Cleaning, Food Processing, Garment Cutting, Grinding and Polishing, Hoppers, Horse Walkers, HVAC, Indexers, Irrigation, Laminating, Lift Station Pumps, Machine Tools, Medical, Milling, Mixers, Oven Conveyors, Packaging, Paint Blenders, Paper Handling, Portable Equipment Used with GFCIs, Pottery Wheels, Printing, Pumps, Range Hoods, Sandblasting, Saws, Sewing, Shakers, Stretch Wrap, Textile, Therapeutic Vibrators, Treadmills, Washing Machines, Wave Soldering, Web Processing, Wheelchair Lifts, Whole House Vacuums and Attic Fans, Winders and Unwinders, Wire Feeders, Wood and Metal Lathes and Cutters.
